Gearboxes with
complete transmissions

Product description

The CMR Group gearbox range also includes complete transmissions designed for certain agricultural machinery sectors where, besides gearboxes, the mechanical transmissions used also require other mechanical components in order to obtain:

The technical features vary to a considerable extent since they depend on the application and the customers’ requirements, below is only a brief description of the CMR Group range which includes the following series: B – RB – R | RE-RX – EV – TE

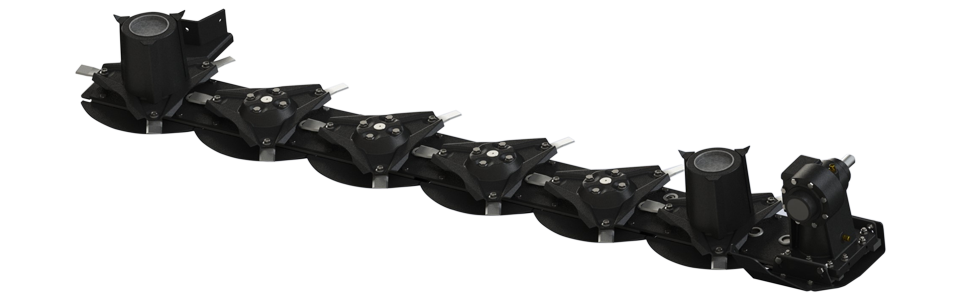

Series B (Cutter bars)

General technical features: disc mowing attachments, mechanical assemblies with gear trough and mowing blade discs. The range includes versions with 4-5-6-7-8 discs. with 2-3 blades. The versions can also be equipped with transfer box with transmission ratio 1:2 for up to 50HP power ratings (540rpm)

  • Features
  • Applications
  • Accessories

B04: transmission ratio 1:2.66, power ratings up to 28HP (1.000rpm), 4 discs, 2-3 blades

Side, front and towed disc mowers. Mowing bar attachments for combine harvesters

not available

  • Features
  • Applications
  • Accessories

B05: transmission ratio 1:2.66, power ratings up to 35HP (1.000rpm), 5 discs, 2 blades

Side, front and towed disc mowers. Mowing bar attachments for combine harvesters

not available

  • Features
  • Applications
  • Accessories

B06: transmission ratio 1:2.66, power ratings up to 41HP (1.000rpm), 6 discs, 2-3 blades

Side, front and towed disc mowers. Mowing bar attachments for combine harvesters

not available

  • Features
  • Applications
  • Accessories

B07: transmission ratio 1:2.66, power ratings up to 49HP (1.000rpm), 7 discs, 2-3 blades

Side, front and towed disc mowers. Mowing bar attachments for combine harvesters

not available

  • Features
  • Applications
  • Accessories

B08: transmission ratio 1:2.66, power ratings up to 56HP (1.000rpm), 8 discs, 2-3 blades

Side, front and towed disc mowers. Mowing bar attachments for combine harvesters

not available

Series RB (Crossbars for round balers)

General technical features: crossbars for round balers, cast iron housing GS400, power ratings from 47.6HP (540rpm) up to 125.8HP (1.000rpm).

  • Features
  • Applications
  • Accessories

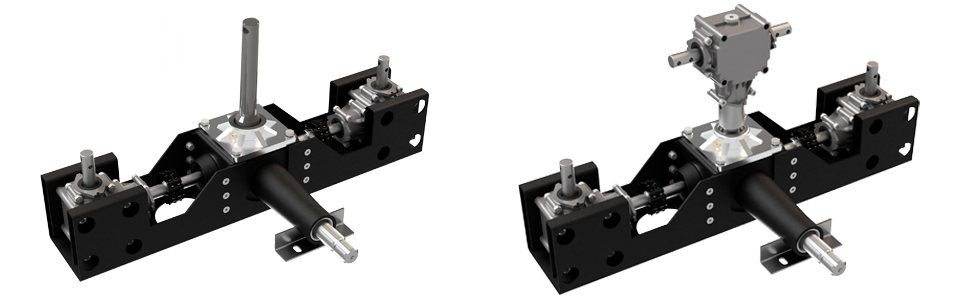

Serie R | RE-RX (Integral angle reducer)

General technical features: triple gearboxes assembly in bearing frame with main 4-shaft gearbox, power ratings up to 15HP (540rpm), aluminium material.

  • Features
  • Applications
  • Accessories

RE: transmission ratio 2:1, power ratings up to 15HP (540rpm), aluminium material

Fertilizer spreaders

not available

  • Features
  • Applications
  • Accessories

RX: transmission ratio 2:1, power ratings up to 15HP (540rpm), aluminium material

Fertilizer spreaders

not available

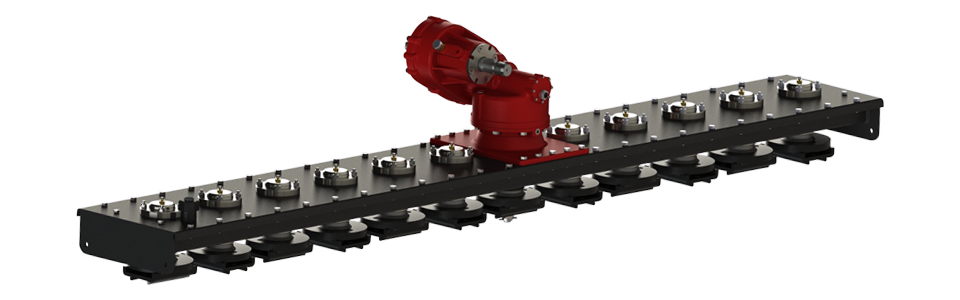

Series EV (Gearboxes for rotary harrows)

General technical features: transmission troughs for harrows, mechanical assemblies complete with gear trough and tooth holder hubs. The range includes 2 different size versions based on the power transmitted by CMR Group gearboxes EC110 and EC130. Power transmission up to 148HP. Same gearboxes as the E series.

  • Features
  • Applications
  • Accessories

EV100: lengths from 1.500 mm. to 3.000 mm., 8 holes with plate, quick release, gearbox EC110, power ratings up to 90HP (540rpm) and 110HP (1.000rpm)

Rotary harrows

not available

  • Features
  • Applications
  • Accessories

EV130: lengths from 2.500 mm. to 4.000 mm., 8 holes with plate, quick release, gearbox EC110, power ratings up to 90HP (540rpm) and 110HP (1.000rpm)

Rotary harrows

not available

Series TE | Tedder (Complete mechanics for tedders)

Complete mechanical assemblies for hay tedder-turners, include rotating elements with bevel gear pairs and double universal joints. The housings and extensions include connections for opening and closing systems as well as for work adjustments.

  • Features
  • Applications
  • Accessories

G40: transmission ratio 2.86:1, power ratings up to 33HP (540rpm), cast iron housing GS400

Mounted and towed hay tedder-turners

not available

The data shown in the specific product tables are indicative and not binding. CMR Group reserves the right, at any time, to modify them at its own discretion, without any obligation to notify its Customers with a view to continuous improvement of its products and services.

For further information and specific variants, please contact our dedicated offices or consult the GEARBOXES Technical Catalogue.
